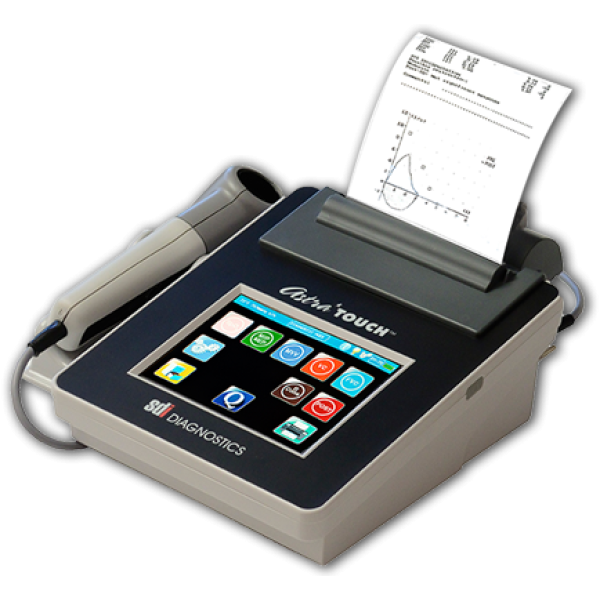

AstraTouch Spirometer

The AstraTouch Spirometer was designed to be easy to use while providing accurate and precise testing data. The simplicity of operation and wealth of configurability options expand the scope of spirometry testing like never before. Review and enter data, make a diagnosis, print a report or download to EMR quickly and with minimal effort.

astratouch logo Features

AstraTouch Couples Sophisticated Simplicity With Comprehensive Spirometry.

  • Test patients in your office or lab, with a wide array of testing configurations
  • Observe test results in real time
  • Download test results to the patient's record
  • Perform interactive real-time testing on your PC
  • Save results or print hard copies of selected data

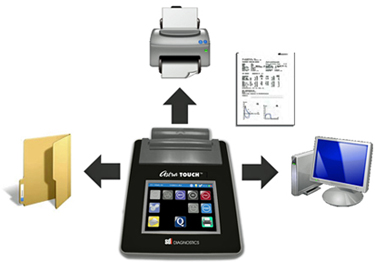

 astra touch spirometer

Easy Navigation

The bright, sharp RealColor display offers easy visualization of graphics and tabular data as the test is being performed. Fingertip touches of the descriptive icons make navigation from screen-to-screen and function-to-function quick and easy, saving time and simplifying the test visit.

 astra touch screen1

AstraPro software expands AstraTOUCH versatility

Sophisticated communication links allow patient test data transfer from the spirometer to the PC archive or output to EHR/EMR. Choose either Pre- and Post-bronchodilator and bronchial challenge testing or use the incentive program with your pediatric patients or adults. AstraTOUCH communicates with your PC directly via USB or wirelessly via Bluetooth.

 astra touch screen2
astra touch screen4
astra touch screen3
astra touch screen5
Choose from four different incentive displays to maximize your patients' testing effort. Choose from 16 different authors for Predicted selection. Select one set for adults and a different set for children or one author for bot The bronchoprovocation mode provides protocol creation, medicant listing and dosages, and PD levels.
AstraTouch™ Features
  • Full color touchscreen display
  • AccuFlo digital turbine
  • Flow-trigger, patient-initiated testing
  • Measures over 40 parameters of FVC, VC, MVV
  • Bluetooth PC Communications
  • Choice of 16 predicted sets
  • AstraPro software
  • On-board thermal printer
  • Meets NIOSH standards
  • Test quality assurance prompts
  • Four selectable interpretations
  • Automated maneuver acceptability
  • Bronchial challenge module
  • No proprietary disposables
  • Audible end-of test-alert
  • Pulse Oximetry (Optional)
  • MIP/MEP (Optional)
  • Weather station (Optional)
  • Ethernet connectivity (Optional)
  • Quick and easy data entry, navigation
  • Accuracy and precision without calibration
  • Better patient cooperation
  • Meets any needs of the clinician
  • Speedy wireless interface for interactive testing
  • Flexibilty of choice
  • Realtime PC testing, archiving or EMR
  • Quick test results
  • Disability testing-capable
  • Enhances test quality
  • Choice for the clinician
  • Quality test assurance
  • Expands testing capabilities
  • Reduces cost-of-ownership
  • Assures patient effort
  • Added testing capabilities
  • Ensures accurate calibration
  • Maximizes communication, telemedicine, capabilities



ASTROTOUCH SPIROMETER
TECHNICAL SPECIFICATIONS

Forced Parameters Measured

Forced Vital Capacity:
FVC, FEV1, FEV1/FVC, PEF, FEF50%FEV6, FEV1/FEC, PEF, FEF50%, FEF25-75%, FEV6,FEV1/ FEV0.5, PEFT, Vext, FIVC, FIF50%, FEF50/FIF50, QC Grades, FEV .5, FEV3, FEV.5/FVC,FEV3/ FVC,FEV1/VC, FEV1/FEV6, FEV1/PEF, FEV1/FIV1, PEF/PIF, FEF25%, FEF75%, FEF75-85%, FET25-75%, FET100, FIV1, FIV1/FIVC, PIF, MTT, MVVInd, Lung age

MVV:
MVV, Br./min

Bronchoconstriction:
FVC, FEV1, PEF, FEF25-75%, PDx

Relaxed Parameters Measured

VC:
VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt

Maneuvers per patient:
8 total; best test and last test highlighted

Interpretation:
Selectable -- Kory, Miller, ATS, NLHEP (Ferguson)

Predicted sets:
Selectable -- 16 Total

Ethnic correction:
Selectable -- % Actual, Caucasian, Hispanic, AfroAmerican

Language:
Selectable -- English, Spanish or French

Measurement Scale (BTPS)

Flow range:
0-16 L/sec

Volume:
0-10 L

Measurement method:
Infrared Interruption via Digital Turbine

Dynamic flow resistance
<1.5 cm H20/L/sec @14 L/sec


Measurement Precision (BTPS)

At highest volume:
+/- 3% or 50 mL

At highest flow:
+/- 5% or 150 mL

Time related precision:
.5%

Volume resolution:
<6 mL

Sampling frequency:
50 Hz

Hardware Specifications

Storage capacity:
3000+ study database

Display:
5.7" High resolution color VGA touchscreen

Communication:
USB to printer and PC, RS232, HL-7*

Dimensions:
7.7" x 10.6"x 3.9"

Weight:
3.7 lbs.

Power supply:
110 to 240V, 50 to 60 Hz or NiMH
battery pack

Storage Temperature:
-4 to 158 F

Printer:
110 mm thermal graphic printer

Optional

Ethernet I/O
Bluetooth to PC
Flex Pulse Oximetry module and program (ask for indices)
NiMH battery/charger pack
Calibration syringe
MIP/MEP
Weather Station (Barometric Pressure, Temperature, Humidity)
Sniff -- Rhinomanometry
Carrying Case
